2012 Crownline Eclipse E2 EC

TBA

Body Style: Deck
Insurance: Get a free quote

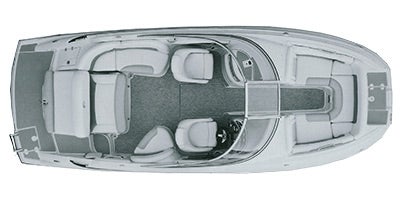

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Eclipse
  Generic Type (Primary)	Deck
  Manufacturer Country	USA
  Major Revision Year	2012
  Revision Status	New
  Competitor Code	BOA12DBF0000
  Introduction Year	2012
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Crownline Boats

• Technical Specifications

  Length (in/mm/ft/m)	270 / 6900 / 22.5 / 6.9
  Length (ft/ft)	22
  Length (ft/in)	6
  Beam (in/m)	102 / 2.6
  Bridge Clearance (in/m)	95 / 2.4
  Draft (Drive Up) (in/mm)	28 / 710
  Draft (Drive Down) (in/mm)	42 / 1070
  Deadrise (deg)	19
  Dry Weight (lbs/kg)	4400 / 2008
  Fuel Capacity (gal/l)	37 / 140.1
  Number of Passengers	11
  Weight Capacity (lbs/kg)	1499 / 680
  Min Recommended Horsepower (bhp/kW)	220 / 164.2
  Max Recommended Horsepower (bhp/kW)	320 / 238.8
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	15 / 56.8
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	MerCruiser®
  Engine Type	V6
  Cylinders	6
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	220 / 164.2
  Cooling	Water (Open Loop)
  Valve Configuration	OHV
  Bore (mm/in)	101 / 4
  Stroke (mm/in)	88 / 3.48
  Displacement (l)	4.3
  Compression Ratio	9.04:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Manufacturer	Mercury
  Engine Trim	4.3L MPI ECT Bravo Three®
  Full Throttle RPM Range Low	4400
  Full Throttle RPM Range High	4800
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Stern Drive
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Depth Indicator	Standard
  Water Temperature Gauge	Standard
  Air Temperature Gauge	Standard

• Drive Line

  Propulsion Type	Propeller
  Stern Drive Brand	Bravo Three®
  Trim System Type	Power
  Twin Propeller	Yes
  Counter Rotating Capable	Yes

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Anchor	Standard
  Bilge System Type	Electric Pump
  Bilge Pump Alarm	Yes
  Engine Compartment Blowers	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Bimini Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Number Of Cockpit Chairs	2
  Number Of Cockpit Sofas	1
  Number Of Open Bow Seats	3
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Convection	No
  Number Of Bridge Seats	0
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Cassette
  Full Head	Yes
  Head Location	Topside

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Brand Name	Sony
  CD Player	Standard

• Ski / Wakeboard

  Tow Pylon

  Standard

• Storage

  Storage Cover

  Standard
