2020 EdgeWater Crossover 248CX

$147,206

Body Style: Bowrider
Insurance: Get a free quote

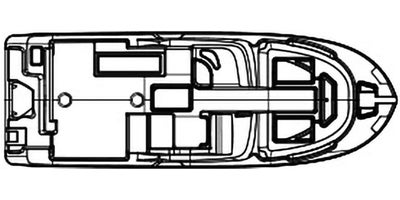

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Crossover Series
  Generic Type (Primary)	Bowrider
  Manufacturer Country	USA
  Major Revision Year	2017
  Revision Status	Carryover
  Competitor Code	BOA20BRK0000
  Introduction Year	2017
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	North Technologies Group

• Technical Specifications

  Length (in/mm/ft/m)	294 / 7500 / 24.5 / 7.5
  Length (ft/ft)	24
  Length (ft/in)	6
  Beam (in/m)	102 / 2.6
  Bridge Clearance (in/m)	96 / 2.4
  Draft (Drive Up) (in/mm)	21 / 533.4
  Transom Height (mm/in)	762 / 30
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	5106 / 2316
  Fuel Capacity (gal/l)	120 / 454
  Number of Passengers	11
  Weight Capacity (lbs/kg)	3365 / 1528
  Min Recommended Horsepower (bhp/kW)	300 / 223.9
  Max Recommended Horsepower (bhp/kW)	350 / 261.2
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	19 / 71.9
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Fourstroke
  Engine Type	V6
  Cylinders	6
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	300 / 223.9
  Horsepower RPM	5500
  Cooling	Water (Open Loop)
  Valves	24
  Valves Per Cylinder	4
  Valve Configuration	DOHC
  Bore (mm/in)	96 / 3.78
  Stroke (mm/in)	96 / 3.78
  Displacement (l)	4.2
  Compression Ratio	10.3:1
  Starter	Electric
  Fuel Requirements	Mid Grade
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	F300
  Engine Manufacturer	Yamaha
  Engine Trim	F300XCA
  Full Throttle RPM Range Low	5000
  Full Throttle RPM Range High	6000
  Engine Dry Weight (lbs/Kg)	562 / 255
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1.75:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote

• Exterior

  Hull Material	Fiberglass
  Boarding Step	Standard
  Sky Light	Standard
  Hot Water	No
  Water Type	Raw Water
  Boarding Ladder	Standard

• Convenience

  Anchor	Standard
  Bilge System Type	Automatic Siphon / Electric Pump
  Power Windlass	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Full Hard Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Cockpit Table	Yes
  Number Of Cockpit Chairs	2
  Number Of Cockpit Sofas	1
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	3
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Pump Out Head
  Full Head	Yes
  Head Location	Cabin
  Shower	Standard

• Fishing

  Fishing Rod Holders	Standard
  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	28 / 118.7
  Baitwell Pump	Yes
  Fishbox	Standard

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Towing & Hauling

  Trailer

  Standard

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Brand Name

  Fusion®

• Ski / Wakeboard

  Tow Pylon

  Standard

• Lights

  Underwater Lighting

  Standard

• Storage

  Storage Cover	Standard
  Ski / Wakeboard Storage	Standard
