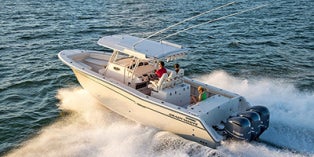

2020 Grady-White Canyon 336

TBA

Body Style: Center Console
Insurance: Get a free quote

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Canyon
  Generic Type (Primary)	Center Console
  Manufacturer Country	USA
  Revision Status	Carryover
  Competitor Code	BOA20CCK0000
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Grady-White Boats Inc.

• Technical Specifications

  Length (in/mm/ft/m)	402 / 10210 / 33.5 / 10.21
  Length (ft/ft)	33
  Length (ft/in)	6
  Beam (in/m)	139 / 3.53
  Bridge Clearance (in/m)	112 / 2.84
  Draft (Drive Up) (in/mm)	26 / 660.4
  Draft (Drive Down) (in/mm)	26 / 660.4
  Deadrise (deg)	20
  Transom Height (mm/in)	635 / 25
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	10100 / 4581
  Fuel Capacity (gal/l)	361 / 1367
  Min Recommended Horsepower (bhp/kW)	600 / 447.7
  Max Recommended Horsepower (bhp/kW)	900 / 671
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	38 / 144
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	10 / 38
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Fourstroke
  Engine Type	V6
  Cylinders	6
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	300 / 223.9
  Horsepower RPM	5500
  Cooling	Water (Open Loop)
  Valves	24
  Valves Per Cylinder	4
  Valve Configuration	DOHC
  Bore (mm/in)	96 / 3.78
  Stroke (mm/in)	96 / 3.78
  Displacement (l)	4.2
  Compression Ratio	10.3:1
  Starter	Electric
  Fuel Requirements	Mid Grade
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	F300
  Engine Manufacturer	Yamaha
  Engine Trim	F300XCA
  Full Throttle RPM Range Low	5000
  Full Throttle RPM Range High	6000
  Engine Dry Weight (lbs/Kg)	562 / 255
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	2
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1.75:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote

• Exterior

  Hull Material	Fiberglass
  Exterior Shower	Standard
  Water Type	Fresh Water / Raw Water
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Anchor	Standard
  Bilge System Type	Automatic Siphon / Electric Pump
  Power Windlass	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	3
  Helm Roof Type	T Top (Hard)
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	3
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	6
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	1
  Total Sleeping Capacity	1
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Head Type	Vacuum Flush
  Full Head	Yes
  Head Location	Cabin
  Shower	Standard

• Fishing

  Fishing Rod Holders	Standard
  Total Baitwell Capacity (gal/l)	45 / 170.3
  Baitwell Pump	Yes
  Total Fishbox Capacity (gal/l)	123.75 / 468.5
  Fishbox Pump	No

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Glass

  Walk-Through Windshield

  No

• Audio & Communication

  Radio

  Standard

Model History

Similar to 2020 Grady-White Canyon 336

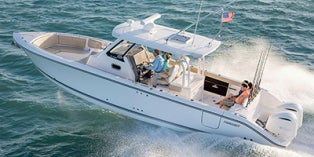

2020 Pursuit S 328

MSRP: $338,390

2020 Pursuit S 368

MSRP: $518,160

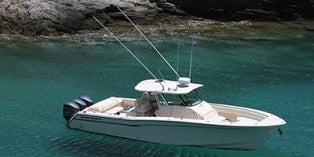

2020 Grady-White Canyon 376

MSRP: $551,860

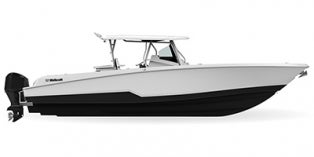

2020 Wellcraft Fisherman 352
