2015 Harris Grand Mariner SL 230 DLDH

2015 Harris Grand Mariner SL 230 DLDH
$45,580
Body Style: Pontoon
Insurance: Get a free quote

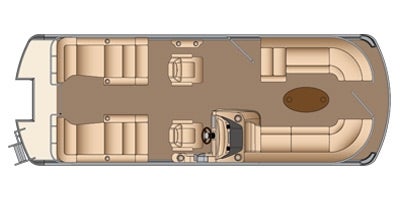

Build & Price View Floorplan

Boat Specifications

  • Identification
    Family Name Grand Mariner
    Generic Type (Primary) Pontoon
    Manufacturer Country USA
    Revision Status Carryover
    Competitor Code BOA15PNL0000
    Introduction Year 2012
    IsEmbargoed No
    IsWIP No
    IsPrelim No
    IsCurrent No
    Parent Company Brunswick Corporation
  • Technical Specifications
    Length (in/mm/ft/m) 301 / 7600 / 25.08 / 7.6
    Length (ft/ft) 25
    Length (ft/in) 1
    Beam (in/m) 102 / 2.6
    Transom Height (in) 20
    Pontoon Length (in/m) 276 / 7
    Pontoon Diameter (in/mm) 25 / 0.64
    Number Of Pontoons 2
    Dry Weight (lbs/kg) 4225 / 1916.5
    Fuel Capacity (gal/l) 30 / 113.6
    Number of Passengers 10
    Weight Capacity (lbs/kg) 2825 / 1281.4
    Min Recommended Horsepower (bhp/kW) 90 / 67.2
    Max Recommended Horsepower (bhp/kW) 200 / 149.2
    Number Of Fresh Water Holding Tanks 0
    Total Fresh Water Tank Capacity (gal/l) 0 / 0
    Total Gray Water Tank Capacity (gal/l) 0 / 0
    Total Black Water Tank Capacity (gal/l) 0 / 0
    Number Of Water Ballast Tanks 0
    Total Water Ballast Tank Capacity (gal/l) 0 / 0
  • Engine
    Engine Brand Name Fourstroke
    Engine Type In-line
    Cylinders 4
    Engine Stroke 4-Stroke
    Horsepower (bhp/kW) 90 / 67
    Cooling Water (Open Loop)
    Valves 16
    Valves Per Cylinder 4
    Valve Configuration DOHC
    Bore (mm/in) 82 / 3.23
    Stroke (mm/in) 82 / 3.23
    Displacement (l) 1.7
    Starter Electric
    Fuel Requirements Regular
    Fuel Type Gas
    Turbocharged No
    Supercharged No
    Engine Model Code 90ELPT
    Engine Manufacturer Mercury
    Engine Trim 90HP ELPT
    Full Throttle RPM Range Low 5000
    Full Throttle RPM Range High 6000
    Engine Dry Weight (lbs/Kg) 399 / 181
    Salt Water Capable Yes
    Engine Alert System Type Visual / Audible
    Emergency RPM Reduction Yes
    Number Of Engines 1
    Engine Configuration Outboard
    Fuel Injector Yes
    Carburetor No
    Carburetion Type Fuel Injected
  • Instrumentation
    Tachometer Standard
    Speedometer Standard
    Fuel Level Warning Type Gauge
    Trim Indicator Standard
    Depth Indicator Standard
  • Drive Line
    Propulsion Type Propeller
    Gear Ratio (s) 2.33:1
    Trim System Type Power
    Twin Propeller No
    Counter Rotating Capable No
  • Steering
    Outboard Steering Control Remote
    Auto Pilot No
  • Exterior
    Hull Material Aluminum
    Hot Water No
    Swim Platform Standard
    Boarding Ladder Standard
  • Topside / Cabin
    Helm Seating Configuration Chair
    Number Of Helm Seats 1
    Helm Roof Type Bimini Top
    Pilot House Door No
    Cockpit Flooring Type Carpeted
    Cockpit Table Yes
    Number Of Cockpit Chairs 1
    Number Of Cockpit Sofas 2
    Number Of Open Bow Seats 5
    Number Of Sofas 0
    Number Of Chairs 0
    Number Of Convertible Beds 0
    Number Of Full Beds 0
    Number Of Single Beds 0
    Total Sleeping Capacity 0
    Number of Queen Beds 0
    Galley Table Configuration No Galley Table
    Convection No
    Bridge Carpeting No
    Bridge Table No
    Number Of Bridge Chairs 0
    Number Of Bridge Sofas 0
    Sun Pad Standard
  • Fishing
    Number of Fishing Pedestal Chairs 0
    Total Baitwell Capacity (gal/l) 0 / 0
    Baitwell Pump No
  • Air Conditioning & Heater
    Cockpit Heater No
    Cabin Heater No
    Bridge Heater No
  • Glass
    Walk-Through Windshield No
  • Audio & Communication
    Brand Name Polk
    Satellite No
  • Storage
    Storage Cover Standard
