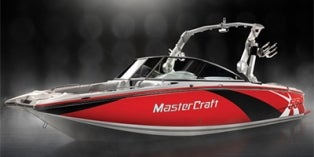

2012 MasterCraft X Series X55

TBA

Body Style: Ski / Wakeboard
Insurance: Get a free quote

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	X-Series
  Generic Type (Primary)	Ski / Wakeboard
  Manufacturer Country	USA
  Competitor Code	BOA12SWK0000
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	MasterCraft Boat Company, Inc.

• Technical Specifications

  Length (in/mm/ft/m)	305 / 7700 / 25.42 / 7.7
  Length (ft/ft)	25
  Length (ft/in)	5
  Beam (in/m)	102 / 2.6
  Draft (Drive Up) (in/mm)	32 / 812.8
  Draft (Drive Down) (in/mm)	32 / 812.8
  Dry Weight (lbs/kg)	5150 / 2341
  Fuel Capacity (gal/l)	90 / 340.7
  Number of Passengers	18
  Weight Capacity (lbs/kg)	3000 / 1360.8
  Min Recommended Horsepower (bhp/kW)	382 / 285
  Max Recommended Horsepower (bhp/kW)	522 / 389.5
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	10 / 37.9
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	3

• Engine

  Engine Brand Name	MV8
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	382 / 285
  Horsepower RPM	5200
  Torque (Ft Lbs/Nm)	411 / 557.2
  Torque RPM	4200
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	2
  Valve Configuration	OHV
  Bore (mm/in)	101.6 / 4
  Stroke (mm/in)	92 / 3.62
  Displacement (l)	5.98
  Compression Ratio	9:6:1
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	MV86.0VDRIVE
  Engine Manufacturer	Ilmor
  Engine Trim	V-Drive
  Salt Water Capable	No
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Engine Configuration	Inboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Trim Indicator	Standard
  Depth Indicator	Standard
  Water Temperature Gauge	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1:56
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Water Type	Fresh Water
  Swim Platform	Standard

• Convenience

  Anchor	Standard
  Bilge System Type	Automatic Siphon / Electric Pump
  Engine Compartment Blowers	Standard
  Wake Control	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	1
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	3
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Galley Table Configuration	No Galley Table
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Cassette
  Full Head	No
  Head Location	Topside

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Towing & Hauling

  Trailer

  Standard

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Radio

  Standard

• Ski / Wakeboard

  Tow Pylon	Standard
  Wakeboard Tower	Standard
  Wakeboard Tower Rack	Standard

• Storage

  Ski / Wakeboard Storage

  Standard

• Fire Suppression System

  Fire Suppression System

  Standard
