2018 MasterCraft X Series X26

$161,510

Body Style: Ski / Wakeboard
Insurance: Get a free quote

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	X-Series
  Generic Type (Primary)	Ski / Wakeboard
  Manufacturer Country	USA
  Major Revision Year	2016
  Revision Status	Carryover
  Competitor Code	BOA18SWK0000
  Introduction Year	2016
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	MasterCraft Boat Company, Inc.

• Technical Specifications

  Length (in/mm/ft/m)	312 / 7900 / 26 / 7.9
  Length (ft/ft)	26
  Length (ft/in)	0
  Beam (in/m)	102 / 2.6
  Draft (Drive Up) (in/mm)	29 / 736.6
  Draft (Drive Down) (in/mm)	29 / 736.6
  Dry Weight (lbs/kg)	6700 / 3039
  Fuel Capacity (gal/l)	94 / 356
  Number of Passengers	18
  Min Recommended Horsepower (bhp/kW)	430 / 320.9
  Max Recommended Horsepower (bhp/kW)	522 / 389.5
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	8 / 30.3
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	3

• Engine

  Engine Brand Name	GDI Class
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	430 / 321
  Horsepower RPM	5400
  Torque (Ft Lbs/Nm)	479 / 650
  Torque RPM	4000
  Cooling	Liquid
  Valves	16
  Valves Per Cylinder	2
  Valve Configuration	OHV
  Bore (mm/in)	103.25 / 4.06
  Stroke (mm/in)	92 / 3.62
  Displacement (l)	6.16
  Compression Ratio	11.5:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	6000GDIVD2.1
  Engine Manufacturer	Ilmor
  Engine Trim	VD 2.1
  Engine Dry Weight (lbs/Kg)	813 / 369
  Salt Water Capable	No
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Inboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Direct Fuel Injection

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  GPS	Standard
  Fuel Level Warning Type	Gauge
  Trim Indicator	Standard
  Depth Indicator	Standard
  Water Temperature Gauge	Standard
  Air Temperature Gauge	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	2.1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	Yes

• Steering

  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Water Type	Fresh Water
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Bilge System Type	Automatic Siphon / Electric Pump
  Engine Compartment Blowers	Standard
  Wake Control	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Cockpit Table	No
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	1
  Number Of Open Bow Seats	5
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Radio

  Standard

• Ski / Wakeboard

  Tow Pylon	Standard
  Wakeboard Tower	Standard

• Fire Suppression System

  Fire Suppression System

  Standard

• Storage

  Ski / Wakeboard Storage

  Standard

Model History

Similar to 2018 MasterCraft X Series X26

2018 Cobalt WSS R Series R7

MSRP: $141,827

2018 Supra SL 400-550

MSRP: $124,900

2018 Supra SE 450-550

MSRP: $132,400

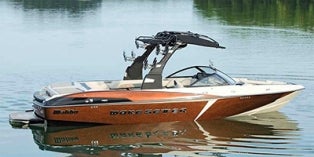

2018 Malibu Boats Wakesetter 25 LSV
