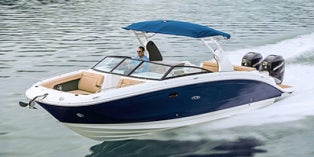

2022 Sea Ray SDX 290 Outboard

TBA

Body Style: Deck
Insurance: Get a free quote

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Sport Boat
  Generic Type (Primary)	Deck
  Manufacturer Country	USA
  Major Revision Year	2016
  Revision Status	Carryover
  Competitor Code	BOA22DBM0000
  Introduction Year	2016
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Brunswick Corporation

• Technical Specifications

  Length (in/mm/ft/m)	350 / 8900 / 29.17 / 8.9
  Length (ft/ft)	29
  Length (ft/in)	2
  Beam (in/m)	108 / 2.7
  Draft (Drive Up) (in/mm)	25 / 635
  Draft (Drive Down) (in/mm)	33 / 838.2
  Deadrise (deg)	21
  Transom Height (mm/in)	635 / 25
  Dry Weight (lbs/kg)	7677 / 3482
  Fuel Capacity (gal/l)	131 / 496
  Number of Passengers	Yacht Certified
  Min Recommended Horsepower (bhp/kW)	400 / 298.5
  Max Recommended Horsepower (bhp/kW)	500 / 283.6
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	20 / 76
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Fourstroke
  Engine Type	V6
  Cylinders	6
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	200 / 149
  Cooling	Water (Open Loop)
  Valves	24
  Valves Per Cylinder	4
  Valve Configuration	DOHC
  Bore (mm/in)	92 / 3.6
  Stroke (mm/in)	86 / 3.4
  Displacement (l)	3.4
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	200XL
  Engine Manufacturer	Mercury
  Engine Trim	200HP XL
  Full Throttle RPM Range Low	5000
  Full Throttle RPM Range High	5800
  Engine Dry Weight (lbs/Kg)	475 / 216
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	2
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  GPS Brand	Simrad™
  Fuel Level Warning Type	Gauge
  Trim Indicator	Standard
  Depth Indicator	Standard
  Water Temperature Gauge	Standard
  Fish Finder	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1.85:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Boarding Step	Standard
  Hot Water	No
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Bilge System Type	Automatic Siphon / Electric Pump
  Bilge Pump Alarm	No
  Wake Control	Standard

• Topside / Cabin

  Helm Seating Configuration	Bench
  Number Of Helm Seats	1
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Cockpit Table	Yes
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	2
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	6
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Number Of Bridge Seats	0
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Cassette
  Full Head	Yes
  Head Location	Topside

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Brand Name	Fusion®
  Satellite	No

• Storage

  Ski / Wakeboard Storage

  Standard

Model History

Similar to 2022 Sea Ray SDX 290 Outboard

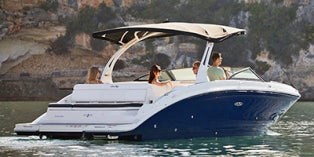

2022 Sea Ray SDX 270

MSRP: TBA

2022 Sea Ray SDX 270 Outboard

MSRP: TBA

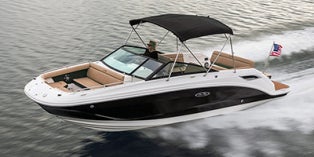

2022 Sea Ray SDX 250
