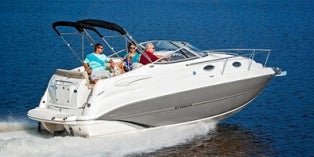

2016 Stingray CS 250

$78,061

Body Style: Cruiser
Insurance: Get a free quote

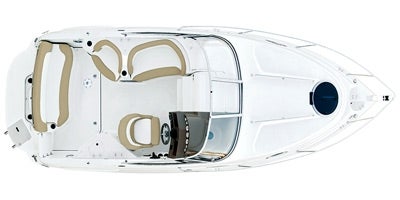

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	CS
  Generic Type (Primary)	Cruiser
  Manufacturer Country	USA
  Revision Status	Carryover
  Competitor Code	BOA16CRK0000
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Stingray® Boat Company

• Technical Specifications

  Length (in/mm/ft/m)	300 / 7600 / 25 / 7.6
  Length (ft/ft)	25
  Length (ft/in)	0
  Beam (in/m)	102 / 2.6
  Bridge Clearance (in/m)	77 / 2
  Draft (Drive Up) (in/mm)	19 / 482.6
  Draft (Drive Down) (in/mm)	35 / 889
  Deadrise (deg)	21
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	4971 / 2254.8
  Fuel Capacity (gal/l)	66 / 250
  Number of Passengers	10
  Weight Capacity (lbs/kg)	2265 / 1027
  Min Recommended Horsepower (bhp/kW)	220 / 164.2
  Max Recommended Horsepower (bhp/kW)	320 / 238.8
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	25 / 95
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Penta
  Engine Type	V6
  Cylinders	6
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	200 / 147
  Horsepower RPM	5800
  Cooling	Water (Open Loop)
  Valve Configuration	OHV
  Bore (mm/in)	99.6 / 3.92
  Stroke (mm/in)	92 / 3.62
  Displacement (l)	4.3
  Compression Ratio	11.0:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	V6-200
  Engine Manufacturer	Volvo Penta
  Engine Trim	V6-200 SX
  Engine Dry Weight (lbs/Kg)	891 / 404
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Stern Drive
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard

• Drive Line

  Propulsion Type	Propeller
  Stern Drive Brand	SX
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	Yes

• Steering

  Steering Assist System	Yes
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Sky Light	Standard
  Hot Water	No
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Anchor	Standard
  Bilge System Type	Automatic Siphon / Electric Pump

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Bimini Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Cockpit Table	Yes
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	2
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	0
  Cabin	Standard
  Number Of Sofas	1
  Number Of Chairs	0
  Number Of Convertible Beds	1
  Number Of Full Beds	1
  Number Of Single Beds	0
  Total Sleeping Capacity	5
  Number of Queen Beds	0
  Galley Table Configuration	Pedestal
  Galley Stove	Standard
  Convection	No
  Galley Refrigerator	Standard
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Head Type	Marine Toilet
  Full Head	Yes
  Head Location	Cabin
  Shower	Standard

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Towing & Hauling

  Trailer

  Standard

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Satellite

  No

• Storage

  Ski / Wakeboard Storage

  Standard
