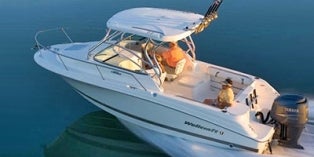

2012 Wellcraft Coastal® 232

TBA

Body Style: Cuddy Cabin
Insurance: Get a free quote

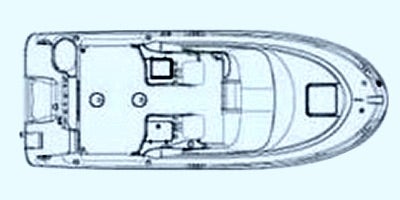

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Coastal®
  Generic Type (Primary)	Cuddy Cabin
  Manufacturer Country	USA
  Revision Status	Carryover
  Competitor Code	BOA12CDJ0000
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Wellcraft Marine Corporation

• Technical Specifications

  Length (in/mm/ft/m)	268 / 6800 / 22.33 / 6.8
  Length (ft/ft)	22
  Length (ft/in)	4
  Beam (in/m)	104 / 2.6
  Bridge Clearance (in/m)	97 / 2.5
  Draft (Drive Up) (in/mm)	15 / 381
  Draft (Drive Down) (in/mm)	32 / 812.8
  Deadrise (deg)	20
  Transom Height (mm/in)	635 / 25
  Dry Weight (lbs/kg)	3600 / 1633
  Fuel Capacity (gal/l)	115 / 435.3
  Number of Passengers	6
  Min Recommended Horsepower (bhp/kW)	200 / 149.2
  Max Recommended Horsepower (bhp/kW)	300 / 223.9
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	8 / 30.3
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	E-TEC
  Engine Type	V6
  Cylinders	6
  Engine Stroke	2-Stroke
  Horsepower (bhp/kW)	200 / 149
  Horsepower RPM	5350
  Cooling	Water (Open Loop)
  Valves	0
  Valves Per Cylinder	0
  Valve Configuration	Reed Valve
  Bore (mm/in)	91 / 3.6
  Stroke (mm/in)	66 / 2.59
  Displacement (l)	2.6
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas / Oil Injected
  Turbocharged	No
  Supercharged	No
  Engine Model Code	E200DPX
  Engine Manufacturer	Evinrude®
  Engine Trim	E200DPX
  Full Throttle RPM Range Low	4850
  Full Throttle RPM Range High	5850
  Engine Dry Weight (lbs/Kg)	433 / 196
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Direct Fuel Injection

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1.85:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Steering Assist System	No
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Sky Light	Standard
  Water Type	Raw Water
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Bilge System Type	Electric Pump
  Bilge Pump Alarm	Yes

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Full Hard Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Cockpit Table	No
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	1
  Number Of Open Bow Seats	0
  Cabin	Standard
  Number Of Sofas	1
  Number Of Chairs	0
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Head Type	Cassette
  Full Head	Yes
  Head Location	Cabin

• Fishing

  Fishing Rod Holders	Standard
  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	21 / 89
  Baitwell Pump	Yes
  Total Fishbox Capacity (gal/l)	22.5 / 95.4
  Fishbox Pump	Yes

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Glass

  Walk-Through Windshield

  No

Model History

Similar to 2012 Wellcraft Coastal® 232

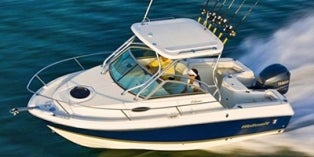

2012 Wellcraft Coastal® 210

MSRP: TBA

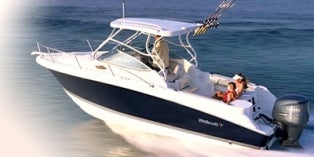

2012 Wellcraft Coastal® 252
