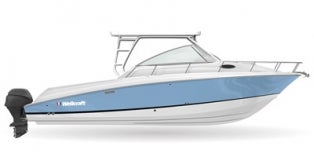

2016 Wellcraft Coastal® 340

TBA

Body Style: Cuddy Cabin
Insurance: Get a free quote

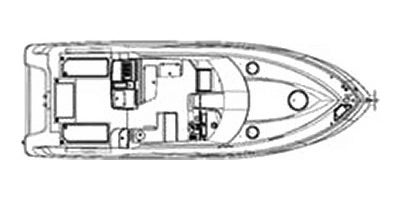

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Coastal®
  Generic Type (Primary)	Cuddy Cabin
  Manufacturer Country	USA
  Revision Status	Carryover
  Competitor Code	BOA16CDT0000
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Wellcraft Marine Corporation

• Technical Specifications

  Length (in/mm/ft/m)	409 / 10400 / 34.08 / 10.4
  Length (ft/ft)	34
  Length (ft/in)	1
  Beam (in/m)	141 / 3.6
  Bridge Clearance (in/m)	122 / 3.1
  Draft (Drive Up) (in/mm)	20 / 508
  Draft (Drive Down) (in/mm)	32 / 812.8
  Deadrise (deg)	20
  Transom Height (mm/in)	635 / 25
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	13500 / 6124
  Fuel Capacity (gal/l)	366 / 1385
  Number of Passengers	12
  Weight Capacity (lbs/kg)	4220 / 1914
  Min Recommended Horsepower (bhp/kW)	700 / 522.3
  Max Recommended Horsepower (bhp/kW)	750 / 560
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	56 / 212
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	10 / 38
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	E-TEC
  Engine Type	V6
  Cylinders	6
  Engine Stroke	2-Stroke
  Horsepower (bhp/kW)	250 / 187
  Horsepower RPM	5150
  Cooling	Water (Open Loop)
  Valves	0
  Valves Per Cylinder	0
  Valve Configuration	Reed Valve
  Bore (mm/in)	98 / 3.85
  Stroke (mm/in)	73 / 2.86
  Displacement (l)	3.3
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas / Oil Injected
  Turbocharged	No
  Supercharged	No
  Engine Model Code	E250DPX
  Engine Manufacturer	Evinrude®
  Engine Trim	E250DPX
  Full Throttle RPM Range Low	5250
  Full Throttle RPM Range High	6000
  Engine Dry Weight (lbs/Kg)	524 / 238
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	2
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Direct Fuel Injection

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1.85:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Sky Light	Standard
  Hot Water	Yes
  Water Type	Fresh Water
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Anchor	Standard
  Bilge System Type	Electric Pump
  Bilge Pump Alarm	Yes
  Power Windlass	Standard

• Topside / Cabin

  Helm Seating Configuration	Bench
  Number Of Helm Seats	2
  Helm Roof Type	Full Hard Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Number Of Cockpit Chairs	0
  Number Of Cockpit Sofas	2
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	0
  Cabin	Standard
  Number Of Sofas	1
  Number Of Chairs	0
  Number Of Convertible Beds	1
  Number Of Full Beds	0
  Number Of Single Beds	2
  Total Sleeping Capacity	6
  Number of Queen Beds	1
  Galley Table Configuration	Pedestal
  Galley Stove	Standard
  Convection	No
  Galley Refrigerator	Standard
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Head Type	Vacuum Flush
  Full Head	Yes
  Head Location	Cabin
  Shower	Standard

• Fishing

  Fishing Rod Holders	Standard
  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	50 / 212
  Baitwell Pump	Yes
  Fishbox Pump	Yes

• Air Conditioning & Heater

  Air Conditioning	Standard
  Cockpit Heater	No
  Cabin Heater	Yes
  Bridge Heater	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Satellite

  No

• Electrical

  Generator Type

  Gas
