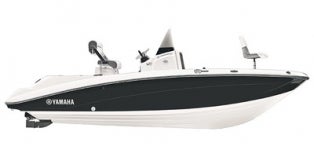

2017 Yamaha 190 FSH Deluxe

$30,499

Body Style: Center Console
Insurance: Get a free quote

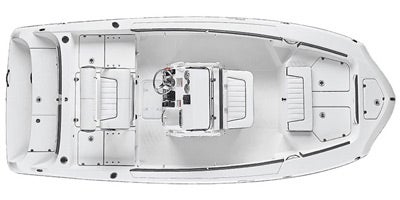

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	FSH Series
  Generic Type (Primary)	Center Console
  Manufacturer Country	USA
  Major Revision Year	2017
  Revision Status	Upgraded
  Competitor Code	BOA17CCE0000
  Introduction Year	2015
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Yamaha

• Technical Specifications

  Length (in/mm/ft/m)	228 / 5800 / 19 / 5.8
  Length (ft/ft)	19
  Length (ft/in)	0
  Beam (in/m)	96 / 2.4
  Bridge Clearance (in/m)	62 / 1.6
  Draft (Drive Up) (in/mm)	14 / 355.6
  Draft (Drive Down) (in/mm)	14 / 355.6
  Deadrise (deg)	18
  Dry Weight (lbs/kg)	2255 / 1022.9
  Fuel Capacity (gal/l)	30 / 113.6
  Number of Passengers	8
  Weight Capacity (lbs/kg)	1451 / 658.2
  Number Of Fresh Water Holding Tanks	0
  Total Fresh Water Tank Capacity (gal/l)	0 / 0
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	1.8L Marine Engine
  Engine Type	In-line
  Cylinders	4
  Engine Stroke	4-Stroke
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	4
  Valve Configuration	DOHC
  Bore (mm/in)	86 / 3.39
  Stroke (mm/in)	78 / 3.07
  Displacement (l)	1.8
  Compression Ratio	11.0:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Manufacturer	Yamaha
  Engine Trim	Jet Drive
  Salt Water Capable	Yes
  Number Of Engines	1
  Engine Configuration	Inboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard

• Drive Line

  Propulsion Type	Jet Drive
  Jet Pump Type	Axial Flow
  Jet Pump Diameter (in/mm)	6.1 / 155
  Impeller Material	Stainless Steel
  Number Of Blades	3
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	Yes

• Steering

  Steering Assist System	No
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Boarding Step	Standard
  Water Type	Raw Water
  Swim Platform	Standard
  Boarding Ladder	Standard
  Aft Sunshade	No

• Convenience

  Bilge System Type	Electric Pump
  Bilge Pump Alarm	No
  Engine Compartment Blowers	Standard
  Wake Control	Standard

• Topside / Cabin

  Helm Seating Configuration	Bench
  Number Of Helm Seats	2
  Helm Roof Type	Bimini Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Cockpit Table	No
  Number Of Cockpit Chairs	3
  Number Of Cockpit Sofas	0
  Number Of Open Bow Seats	4
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Number Of Bridge Seats	0
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard

• Fishing

  Fishing Rod Holders	Standard
  Number of Fishing Pedestal Chairs	1
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	18 / 76.3
  Fishbox Pump	Yes

• Towing & Hauling

  Trailer

  Standard

• Glass

  Walk-Through Windshield

  No

• Audio & Communication

  Satellite

  No

• Storage

  Storage Cover

  Standard
